Band Saw Bomar ERGONOMIC 320.258 DGH
- Maximum cutting diameter Ø 258 mm / 258x320 mm
- Cutting speed: 20-120 m/min (Stepless)
- Saw blade dimension: 27 x 0.90 x 2910 mm
- Arc swivel to the left: 45°
- Arc swivel to the right: 60°
Lowest price in the last 30 days: 7.989,78 €!
Shipping is not included in the price.
For all orders over €200, we will give you free shipping!
07.10.2026
Short product description
- Maximum cutting diameter Ø 258 mm / 258x320 mm
- Cutting speed: 20-120 m/min (Stepless)
- Saw blade dimension: 27 x 0.90 x 2910 mm
- Arc swivel to the left: 45°
- Arc swivel to the right: 60°
Product description

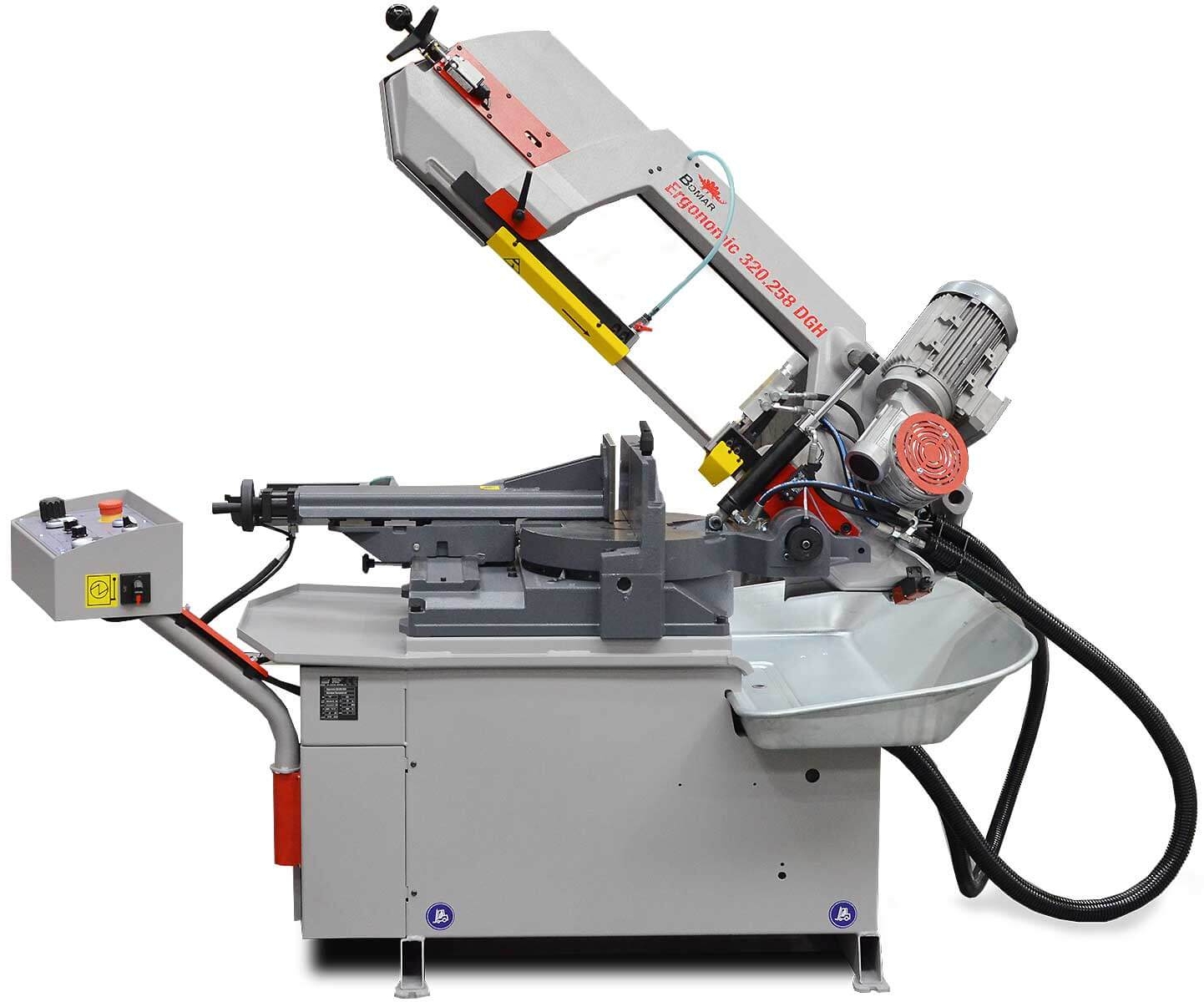

Semi-automatic band saw BOMAR Ergonomic 320.258 DGH
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|
| Straight | 0 ° | 258mm | 320x100mm | 275x250mm | 250mm | 150mm | 150mm | |
| Right | 45 ° | 210mm | 210x100mm | 185x245mm | 195mm | |||
| Left | 45 ° | 185mm | 195x100mm | 150x250mm | 150mm | |||
| Right | 60 ° | 135mm | 135x100mm | 135x110mm | 170mm | |||
| Saw blade | 27 x 0.90 x 2910 mm | |||||||
| Power drive | 1.5 kW, 400 V | |||||||
| Cutting speed | 20-120 m/min (Stepless) | |||||||
Bandsaw features:
-
-

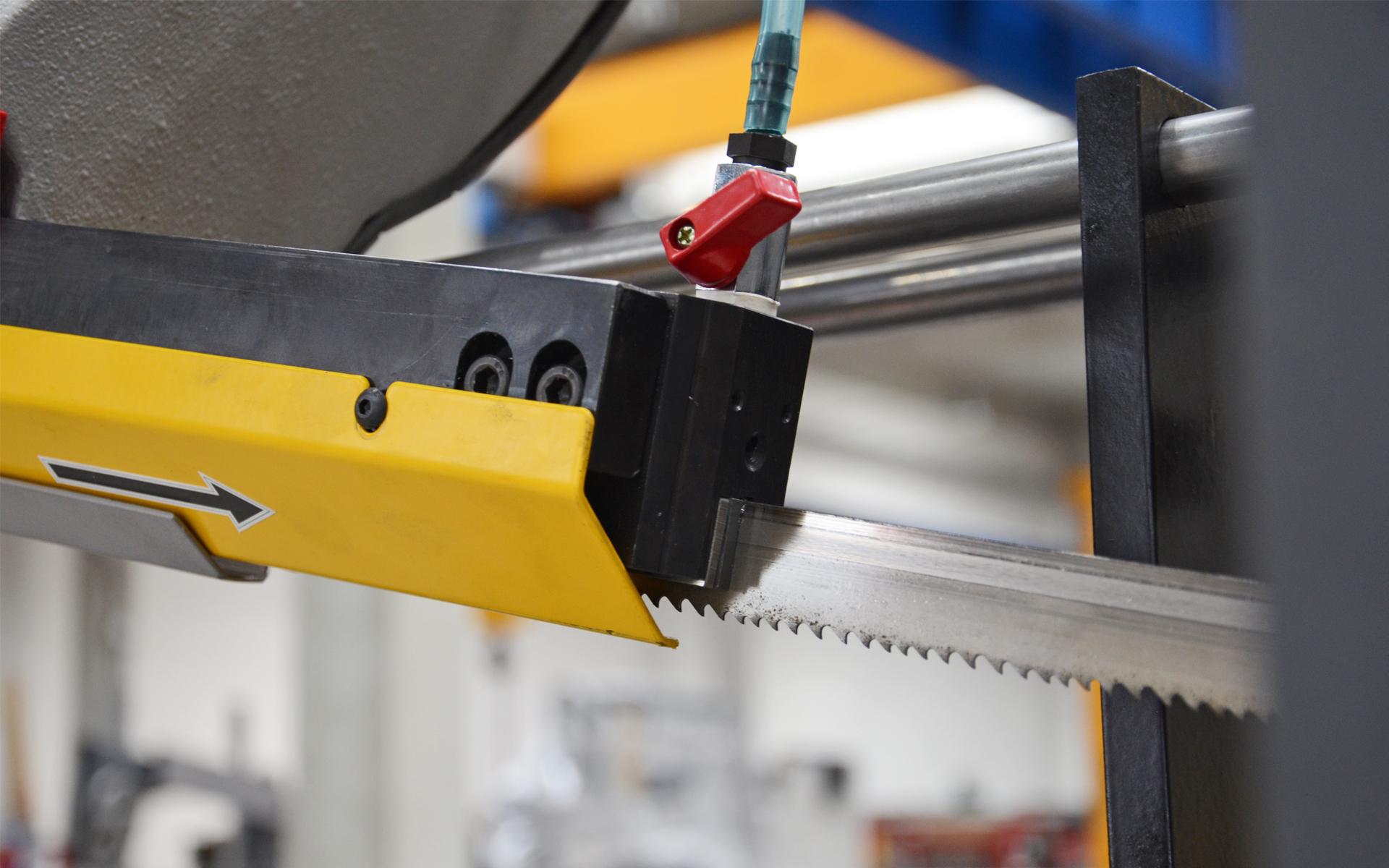

- Precise saw blade guides with hard metal HM guides and wear-resistant guide wheels
- Stable saw frame made of gray cast iron, vibration-damping design

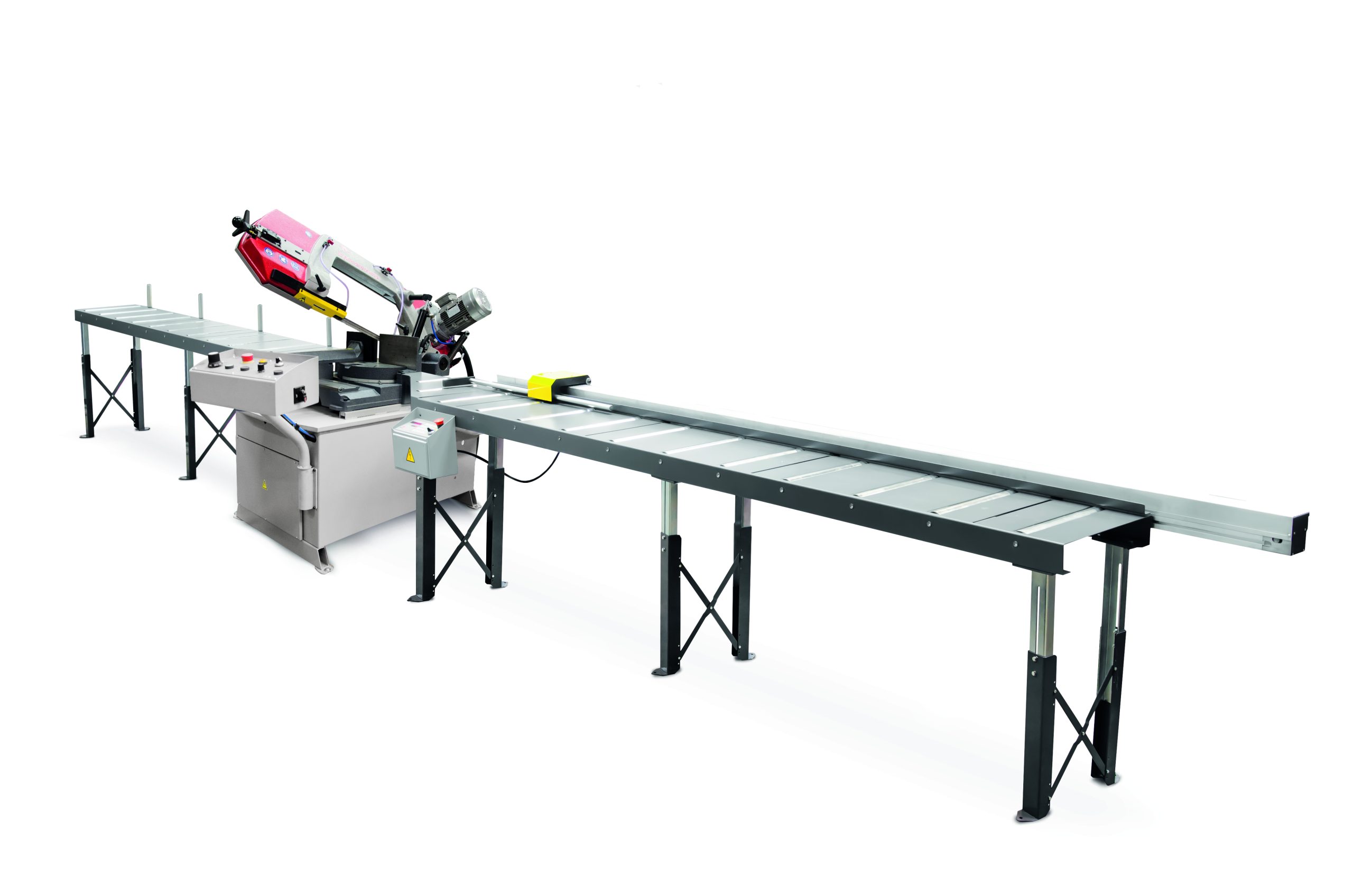

- Measuring stop length 500 mm
- Cutting speed is adjusted steplessly using a frequency converter (20-120 m/min)

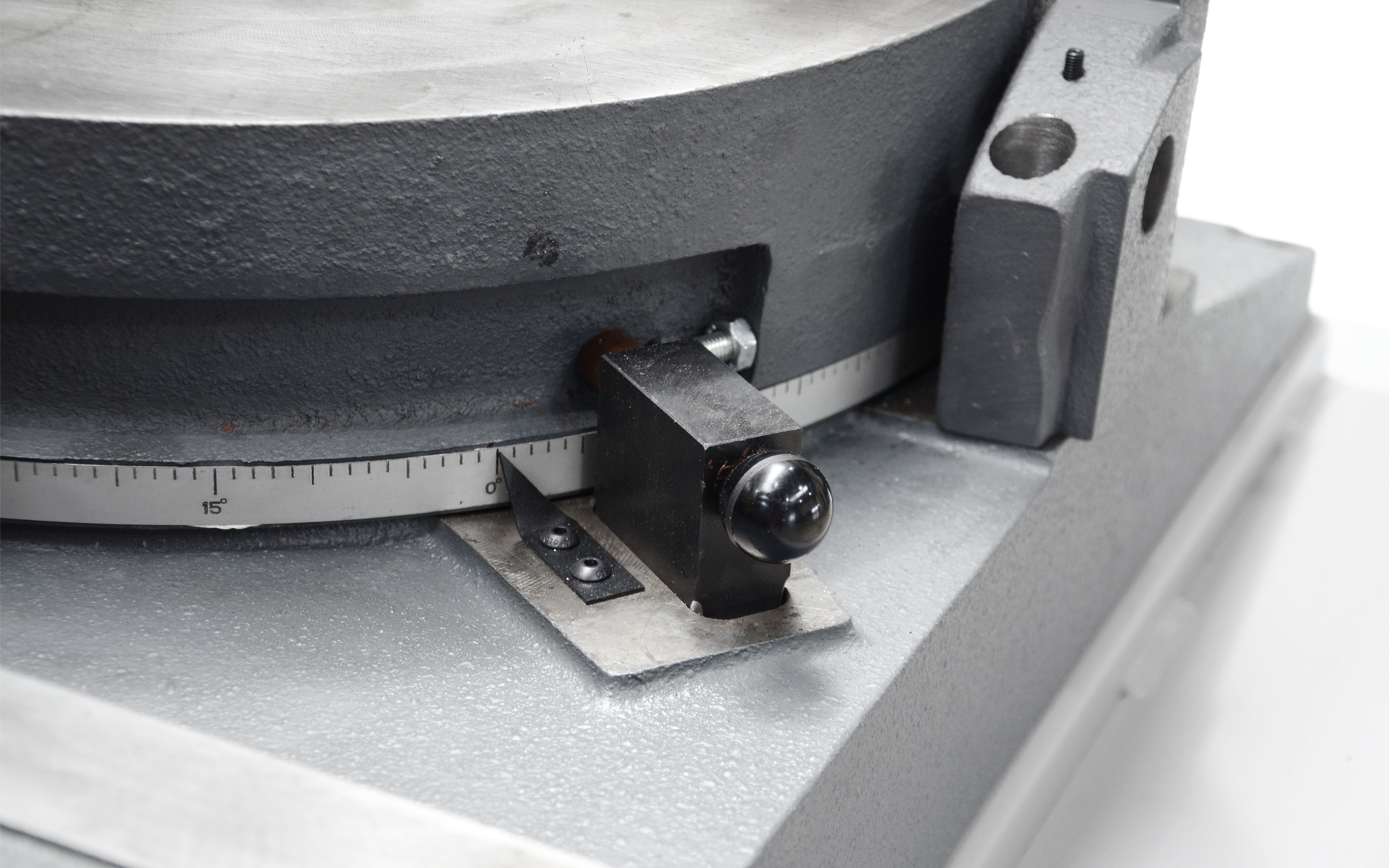

- Stepless adjustment of cutting angle with scale reading
- While swinging the frame, the table also rotates - no gouging into the table
- Cleaning brush for cleaning between the teeth
- Adjustable arm with saw blade guide, set to workpiece size
- Cooling system with emulsion, optionally with oil mist
- Measuring stop length 500 mm
- Saw table rotates together with the saw frame

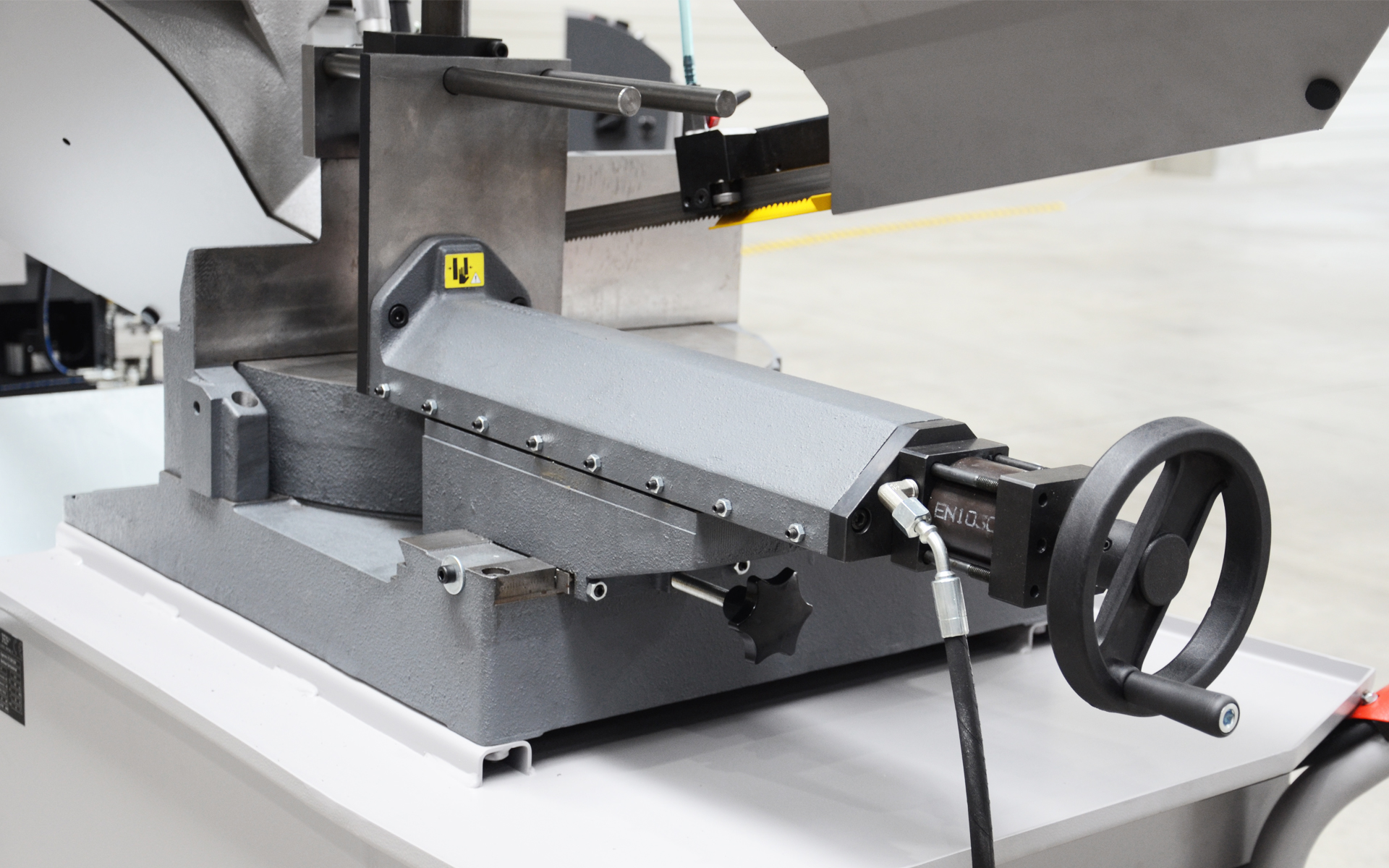

- Clamp with quick width adjustment
- Hydraulic clamping of the workpiece
- Stepless hydraulic regulation of the lowering speed of the saw frame
- ADFR automatic pressure force regulation depending on the length of the cutting channel - constant monitoring of the saw blade pressure force and thus the speed of lowering the saw
- Hydraulic lifting of the saw frame after cutting, lifting height is steplessly adjustable
- Option: vertical hydraulic clamping of profile bundles
The bandsaw operates semi-automatically, which means:
- Hydraulic clamping of the workpiece
- Automatic lowering of the saw frame, feed speed regulation, and automatic pressure force regulation
- After the cut is completed, it automatically rises to the upper position

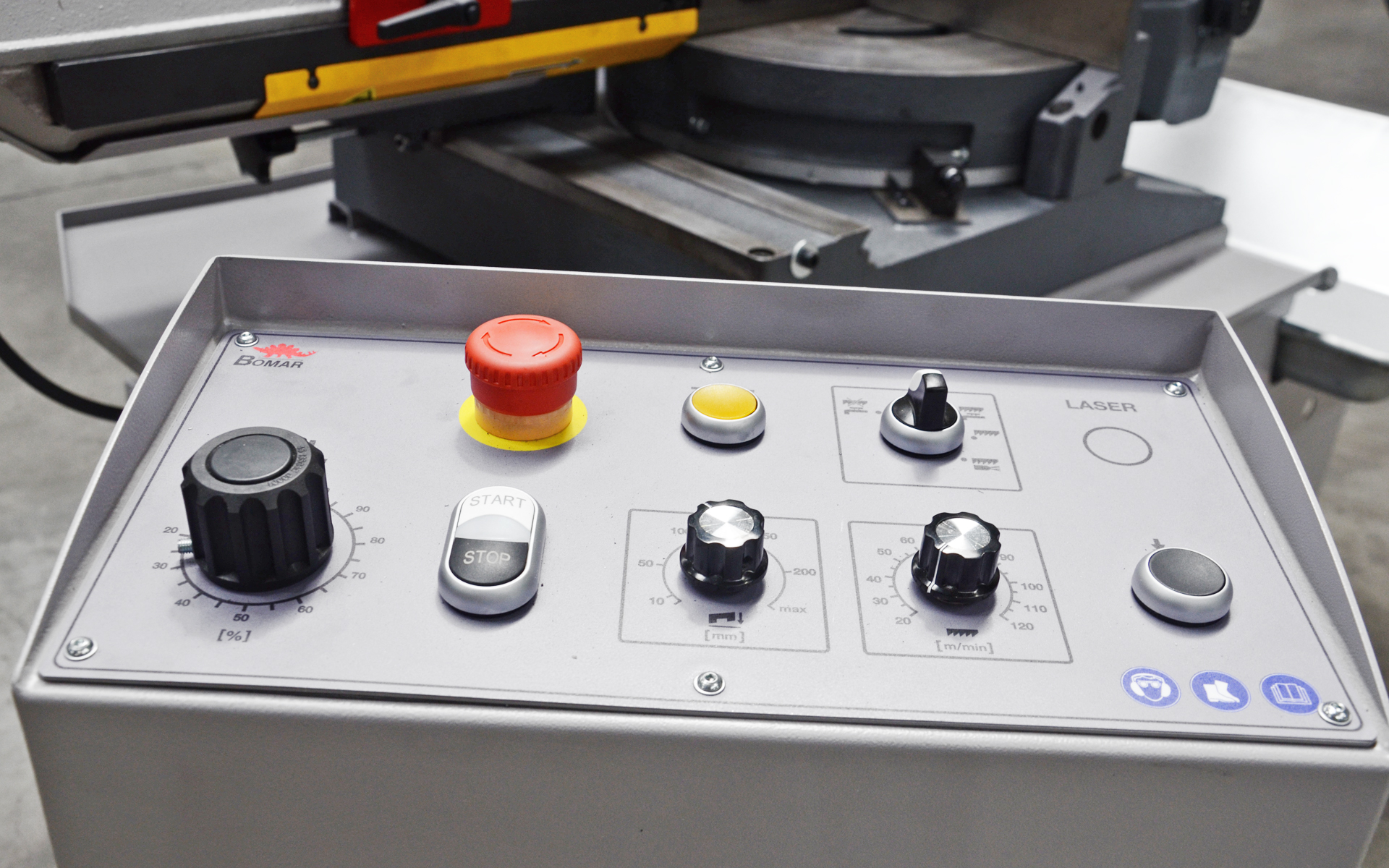

- Adjustment of saw frame lifting height from the control panel - stepless
- Clamp hydraulically opens
- Cycle repetition
Technical data:
Range of cutting angles 45°L - 90°- 45°R - 60°R Minimum cutting diameter Ø 5 mm Residual 20 mm Cutting feed Hydraulic Saw bow lifting Hydraulic Workpiece clamping Hydraulic Saw band guides Hardmetal HM and ball guides Saw band tensioning Mechanical Motor power 1.5 kW Voltage 400 V, 50 Hz Machine dimensions (LxWxH) 1700 x 1480 x 2000 mm Weight 390 kg
-
