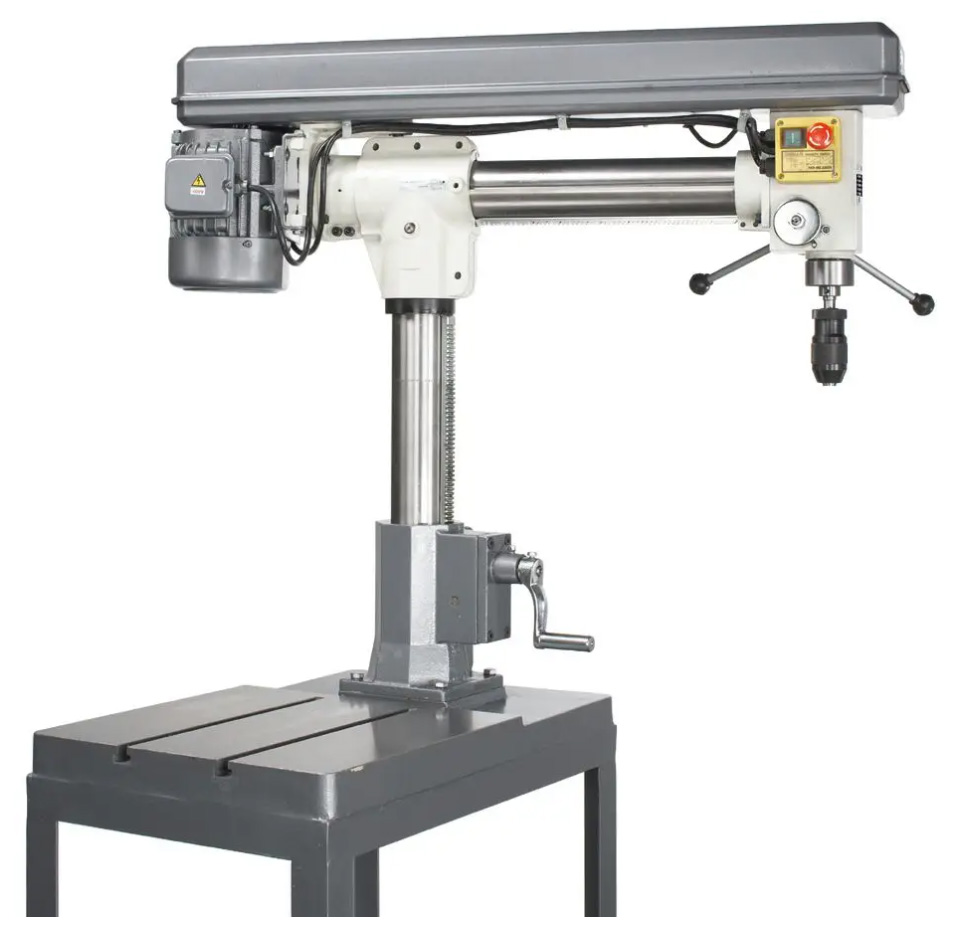

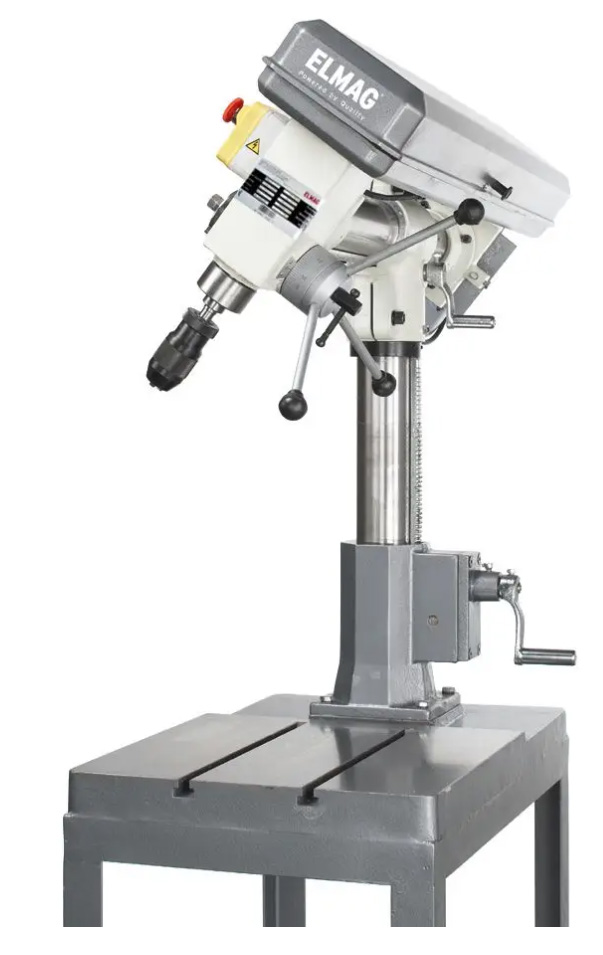

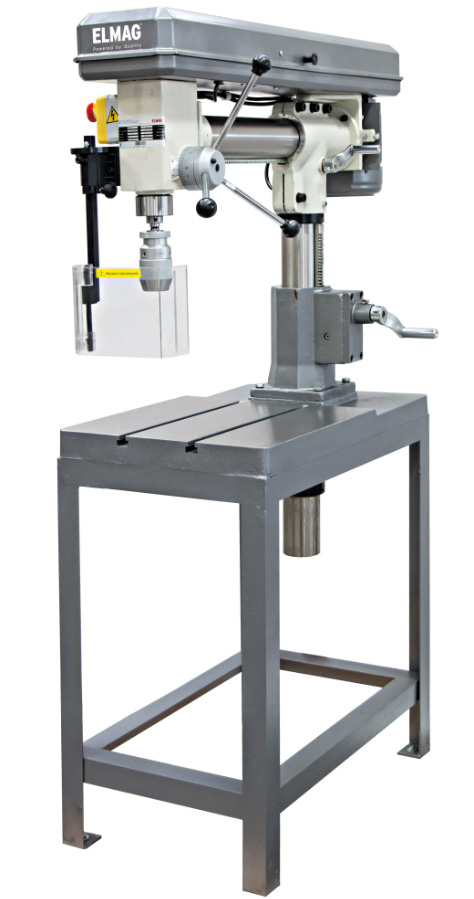

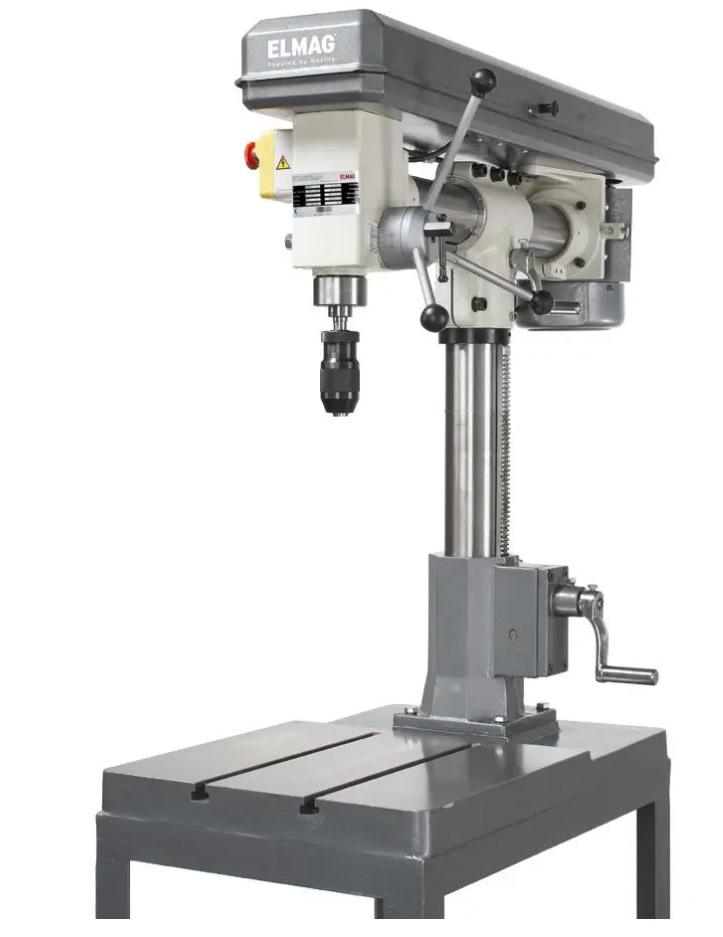

Elmag RKBM 16 T
- Drilling capacity in steel: 16 mm
- Taper in spindle MK-2
- Overhang: 160 - 520 mm
- Revolutions: 190 - 2800 rpm
- Spindle stroke: 80 mm
Lowest price in the last 30 days: 4.727,50 €!
Shipping is not included in the price.
Available on backorder
For all orders over €200, we will give you free shipping!
21.10.2026
Short product description
- Drilling capacity in steel: 16 mm
- Taper in spindle MK-2
- Overhang: 160 - 520 mm
- Revolutions: 190 - 2800 rpm
- Spindle stroke: 80 mm
Product description
Cone in quill: MK-2
Speed range (rpm): 190-2800
Number of speeds: 9
Drilling stroke: 80
T-slots/width (mm): 14
Drill head stroke (mm): 290
Overhang (mm): 160-520
Drill head - tilt: +- 90°
Drill head - swiveling: +- 180°
Distance from quill to table (mm): 270-560
Table size (mm): 450×430
Table height (mm): 800
Motor power (W): 750
Connection (V/Hz): 400/50-60
Cubature (mm): 450x430x560
Height (mm): 1700
Weight (kg): 100
Advantages
- Model with high torque, 9 speed levels 190 - 2800 rpm,
- Drive via quality belt
- Drill spindle with precise bearings
- With left and right rotation
- Depth scale and depth stop
- Drill table with T-slots and an emulsion channel, tiltable, rotatable, and height adjustable
- Ground steel column with rack
- Safety switch with undervoltage protection
Standard equipment:
- Self-tightening drill chuck B 16, 1–13 mm
- Tapered shank MK 2 / B 16
- Ejecting wedge
- Tool set
- Operating instructions / CE
Technical data:
| Drilling capacity in steel | 16 mm |
| Spindle fitting (drill spindle) | MK 2 |
| Speed range | 190–2800 rpm |
| Speed settings | 9 levels |
| Spindle stroke | 80 mm |
| T-slots, width | 14 mm |
| Head stroke | 290 mm |
| Overhang | 160 - 520 mm |
| Tiltable drill head | ± 90° |
| Rotatable drill head | ± 180° |
| Distance between spindle and table | 270 - 560 mm |
| Drill table surface | 450 x 430 mm |
| Motor power | 750 W |
| Power supply | 400/50 V/Hz |
| Dimensions | 450 x 430 x 560 mm |
| Base plate surface (L x W) | 700 x 450 mm |
| Height (total) | 1700 mm |
| Weight | 100 kg |
