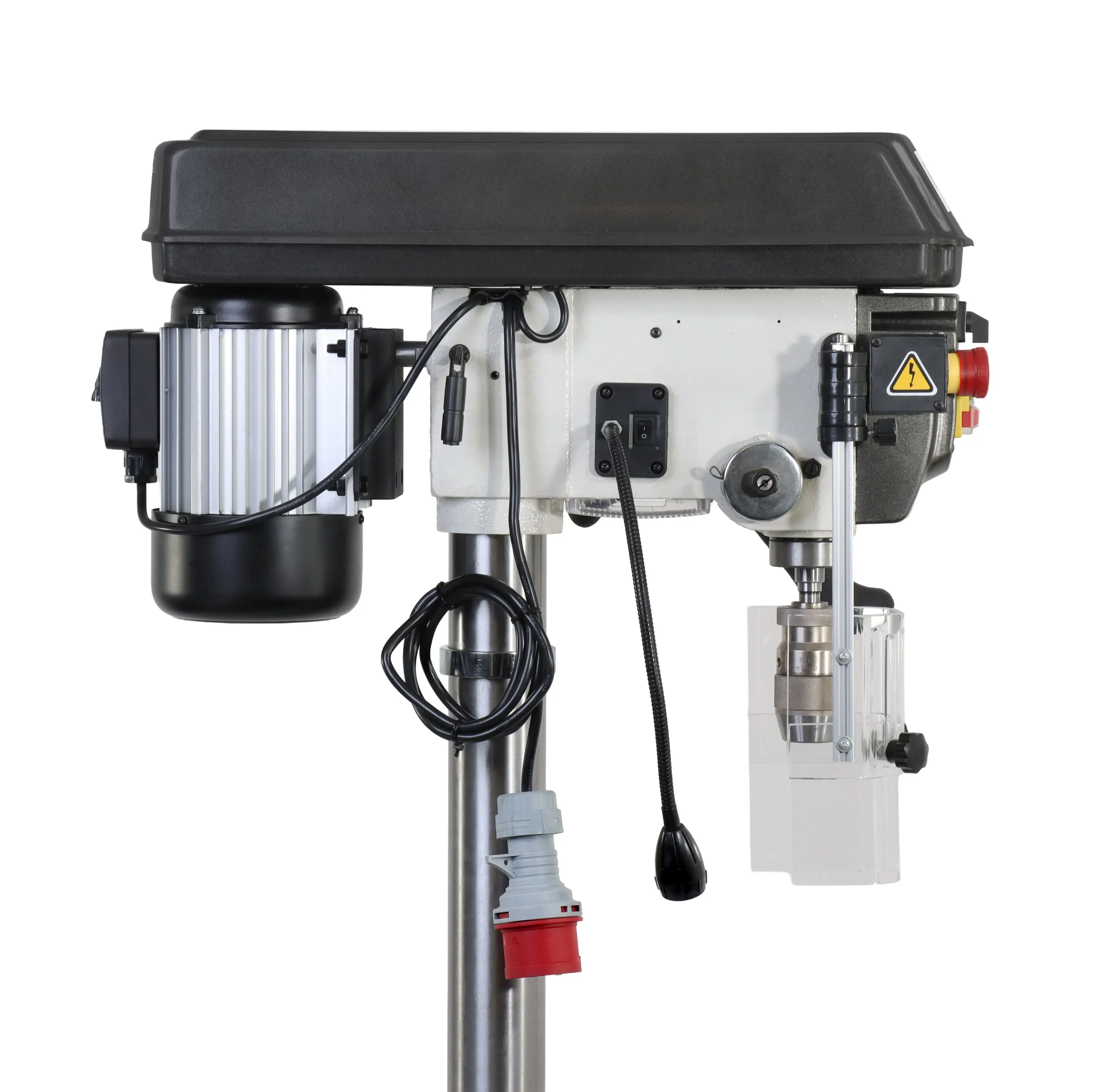

ELMAG KBM 16SN drilling machine
- Drilling capacity in steel: 16 mm
- Taper in quill MK-2
- Overhang: 195 mm
- Revolutions: 100 - 2000 rpm
- Spindle stroke: 80 mm
Lowest price in the last 30 days: 890,60 €!
Shipping is not included in the price.
For all orders over €200, we will give you free shipping!
08.10.2026
Short product description
- Drilling capacity in steel: 16 mm
- Taper in quill MK-2
- Overhang: 195 mm
- Revolutions: 100 - 2000 rpm
- Spindle stroke: 80 mm
Product description
Advantages
- Model with high torque, 12-speed range from 100 to 2,000 RPM, ideal low speeds for hard materials
- Drive via high-quality belt
- Drill spindle with precise bearings
- Capable of rotating left and right

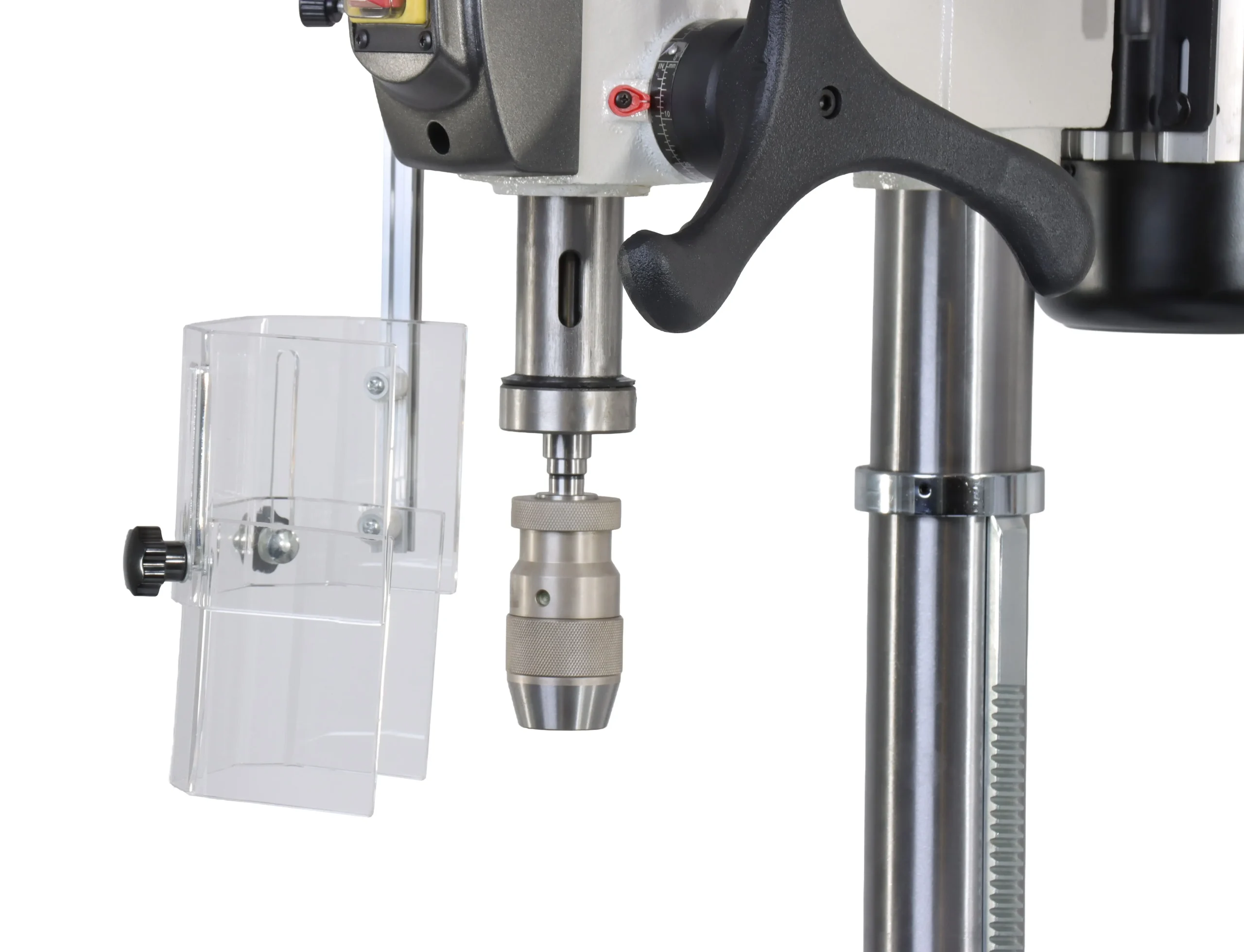

- Drill spindle protection
- Depth scale and depth stop
- Drill table with T-slots and an emulsion channel, tiltable, rotatable, and height adjustable
- Polished steel column with a rack and pinion
- Illuminated drill table
- Base plate with clamping slots
- Safety switch with undervoltage protection
Standard equipment:
- Self-tightening drill chuck B 16, 1–13 mm
- Taper shank MK 2 / B 16
- Drift key
- Tool set
- Operating instructions / CE
Technical data:
| Drilling capacity in steel | 16 mm |
| Spindle mount (drill spindle) | MK 2 |
| Speed range | 100–2000 RPM |
| Speed settings | 12 levels |
| Spindle travel | 80 mm |
| T-slots, width | 16 mm |
| Drill table movement | 630 mm |
| Spindle extension | 195 mm |
| The drill table is tiltable | ± 45° |
| The drill table is rotatable | ± 180° |
| Distance between spindle and table | 75 - 680 mm |
| Drill table surface | 300 x 310 mm |
| Motor power | 550 W |
| Power supply | 400/50 V/Hz |
| Dimensions | 300 x 310 x 680 mm |
| Base plate surface (L x W) | 285 x 495 mm |
| Height (overall) | 1610 mm |
| Weight | 58 kg |
