Straight 0 ° 120 mm 140 x 90 mm 108 mm Right 45 ° 105 mm 100 x 90 mm 95 mm Left 45 ° 105 mm 100 x 90 mm 95 mm Cutting speed 4300 rpm Cut-off disc blade Ø 350 mm / 25.4 mm Drive power 5,500 W, 400 V   Features of the saw with cutting disc: HIGH-SPEED for very straight cuts Modern cutting saw with a cutting disc, suitable for cutting bar materials such as solid rods, profile bars, round or rectangular tubes... from steel, stainless metals, Inox, grey cast iron, non-ferrous metals. Suitable for use in workshops, as well as outdoors in protected areas such as large construction sites for quick cutting of construction and reinforcement materials.   cutting almost burr-free: very fast rotary cutting with a cutting disc powered through precise bearings highest repeatability in series cutting: stable adjustable end stop quick and precise angle setting with just one locking lever: with quick angle adjustment and scale 45°-0°-45° exactly adjustable cutting depth: with adjustable depth stop variable clamping range: lateral adjustable clamping jaw powerful: ideally dimensioned drive unit with high torque ideal drive assembly: smooth-running high-performance belt transmission stable, gentle cutting guidance: ergonomically positioned control handle with a safety-locked switch and automatic return safe operation: belt drive with a fixed protective cover, self-locking protective cover for the cutting disc, safety STOP button, undervoltage protection, CE-compliant long service life: very robust construction for use in craft and industry maximum cutting capacity 140x80 mm cutting disc diameter 350mm high-performance drive - 5,500 W high rotation speed - 4,300 rpm STANDARD EQUIPMENT TV saw for metal cutting Stop for limiting cutting length Quick angle adjustment with quick angle clamping system, angular scale Adjustable cutting depth stop Clamp for holding workpieces during friction cutting Adjustable clamping jaw High-performance belt transmission ERGO control handle with return spring Safety-locked switch on saw handle Self-locking cutting disc protection Protective cover for belt drive Safety STOP button, undervoltage protection Handy tool, user manual, CE declaration of conformity   Additional equipment: cutting disc 300x3.5x25.4 mm or 350x4.0x25.4 mm machine base   Cutting disc hole for friction cutting 25.4 mm Clamp diameter 190 mm Cutting angle 45 - 0 - 45 ° Dimensions 830 x 1025 x 900 mm Weight 145 kg

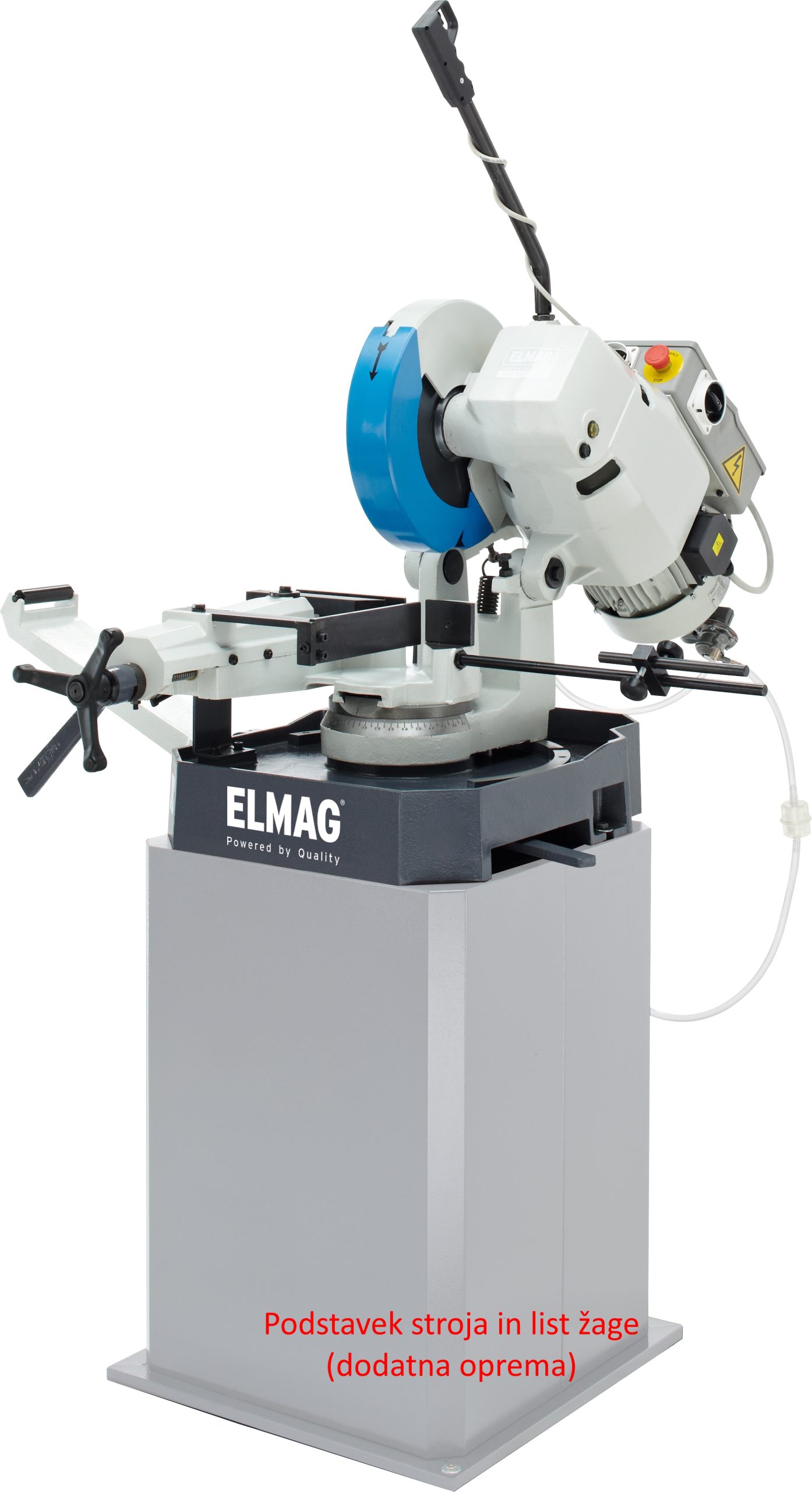

- Cooling system with emulsion- for steel, iron, non-ferrous metals, solid materials, and profiles- 2 rotation speeds of 40 and 80 RPM suitable for various workpieces- very precise cutting at all angles* measuring stop* quick clamping system for angle adjustment left and right up to 45° with large scale* strong quick clamping vise for quality clamping of workpieces* eccentric for quick clamping of workpieces in series work* adjustable clamping jaws* support console for workpieces with roller* adjustable depth cutting limiter* high-performance drive* gearbox with oil bath - permanently lubricated* cooling system with diaphragm pump for emulsion* ergonomic handle with return spring* safety switch on the handle* saw blade guard with automatic opening and closing* emergency STOP button* undervoltage protectionThe base and blade are additional equipment!Outer diameter of circular saw (mm): 350Inner diameter of circular saw (mm): 32Cutting area 90° round (mm): 110Cutting area 90° square (mm): 100Cutting area 90° rectangular (mm): 155×80Cutting area 45° round (mm): 90Cutting area 45° square (mm): 85Cutting area 45° rectangular (mm): 90×85No. of circular saw RPM: 2 speeds 40/80Cutting angle (°): 45°-0°-45°Emulsion cooling: YESElectric motor (V / kW): 400 / 1.8 - 2.4Dimensions LxWxH (mm): 1475x1000x1200Weight (kg): 210

Cutting capacity Ø 100 / 90x90 / 140x70 mm Saw blade diameter Ø 315 mm Number of revolutions: 40 / 80 rpm Blade rotation: +- 45°

Cutting capacity Ø 100 / 90x90 / 140x70 mm Saw blade diameter Ø 315 mm Number of revolutions: 40 / 80 rpm Blade rotation: +- 45°

Cutting capacity Ø 110 / 100x100 / 155x80 mm Saw blade diameter Ø 350 mm Number of revolutions: 20 / 40 rpm Blade tilt: +- 45°

Cutting capacity Ø 110 / 100x100 / 155x80 mm Saw blade diameter Ø 350 mm Number of revolutions: 20 / 40 rpm Blade swivel: +- 45°

Cutting capacity Ø 100 / 90x90 / 140x70 mm Saw blade diameter Ø 315 mm Speed: 20 / 40 rpm Blade tilt: +- 45°

Cutting capacity Ø 100 / 90x90 / 140x70 mm Saw blade diameter Ø 315 mm Number of revolutions: 40 / 80 rpm Blade rotation: +- 45°

Cutting capacity Ø 90 / 80x80 / 115x70 mm Saw blade diameter Ø 315 mm Number of revolutions: 40 / 80 rpm Blade swivel: +- 45°

Cutting capacity Ø 80 / 80x80 / 100x70 mm Saw blade diameter Ø 300 mm Number of rotations: 40 / 80 rpm Blade tilt: +- 45°

Cutting capacity Ø 70 / 70x70 / 95x55 mm Saw blade diameter Ø 250 mm Number of revolutions: 40 / 80 rpm Blade rotation: +- 45°

- Cooling system with emulsion- for steel, iron, non-ferrous metals, solid materials, and profiles- 2 rotation speeds of 40 and 80 RPM suitable for various workpieces- very precise cutting at all angles* measuring stop* quick clamping system for angle adjustment left and right up to 45° with large scale* strong quick clamping vise for quality clamping of workpieces* eccentric for quick clamping of workpieces in series work* adjustable clamping jaws* support console for workpieces with roller* adjustable depth cutting limiter* high-performance drive* gearbox with oil bath - permanently lubricated* cooling system with diaphragm pump for emulsion* ergonomic handle with return spring* safety switch on the handle* saw blade guard with automatic opening and closing* emergency STOP button* undervoltage protectionThe base and blade are additional equipment!Outer diameter of circular saw (mm): 350Inner diameter of circular saw (mm): 32Cutting area 90° round (mm): 110Cutting area 90° square (mm): 100Cutting area 90° rectangular (mm): 155×80Cutting area 45° round (mm): 90Cutting area 45° square (mm): 85Cutting area 45° rectangular (mm): 90×85No. of circular saw RPM: 2 speeds 40/80Cutting angle (°): 45°-0°-45°Emulsion cooling: YESElectric motor (V / kW): 400 / 1.8 - 2.4Dimensions LxWxH (mm): 1475x1000x1200Weight (kg): 210

Cutting capacity Ø 100 / 90x90 / 140x70 mm Saw blade diameter Ø 315 mm Number of revolutions: 40 / 80 rpm Blade rotation: +- 45°

Cutting capacity Ø 100 / 90x90 / 140x70 mm Saw blade diameter Ø 315 mm Number of revolutions: 40 / 80 rpm Blade rotation: +- 45°

Cutting capacity Ø 100 / 90x90 / 140x70 mm Saw blade diameter Ø 315 mm Speed: 20 / 40 rpm Blade tilt: +- 45°

Cutting capacity Ø 100 / 90x90 / 140x70 mm Saw blade diameter Ø 315 mm Number of revolutions: 40 / 80 rpm Blade rotation: +- 45°

  Straight 0 ° 120 mm 140 x 90 mm 108 mm Right 45 ° 105 mm 100 x 90 mm 95 mm Left 45 ° 105 mm 100 x 90 mm 95 mm Cutting speed 4300 rpm Cut-off disc blade Ø 350 mm / 25.4 mm Drive power 5,500 W, 400 V   Features of the saw with cutting disc: HIGH-SPEED for very straight cuts Modern cutting saw with a cutting disc, suitable for cutting bar materials such as solid rods, profile bars, round or rectangular tubes... from steel, stainless metals, Inox, grey cast iron, non-ferrous metals. Suitable for use in workshops, as well as outdoors in protected areas such as large construction sites for quick cutting of construction and reinforcement materials.   cutting almost burr-free: very fast rotary cutting with a cutting disc powered through precise bearings highest repeatability in series cutting: stable adjustable end stop quick and precise angle setting with just one locking lever: with quick angle adjustment and scale 45°-0°-45° exactly adjustable cutting depth: with adjustable depth stop variable clamping range: lateral adjustable clamping jaw powerful: ideally dimensioned drive unit with high torque ideal drive assembly: smooth-running high-performance belt transmission stable, gentle cutting guidance: ergonomically positioned control handle with a safety-locked switch and automatic return safe operation: belt drive with a fixed protective cover, self-locking protective cover for the cutting disc, safety STOP button, undervoltage protection, CE-compliant long service life: very robust construction for use in craft and industry maximum cutting capacity 140x80 mm cutting disc diameter 350mm high-performance drive - 5,500 W high rotation speed - 4,300 rpm STANDARD EQUIPMENT TV saw for metal cutting Stop for limiting cutting length Quick angle adjustment with quick angle clamping system, angular scale Adjustable cutting depth stop Clamp for holding workpieces during friction cutting Adjustable clamping jaw High-performance belt transmission ERGO control handle with return spring Safety-locked switch on saw handle Self-locking cutting disc protection Protective cover for belt drive Safety STOP button, undervoltage protection Handy tool, user manual, CE declaration of conformity   Additional equipment: cutting disc 300x3.5x25.4 mm or 350x4.0x25.4 mm machine base   Cutting disc hole for friction cutting 25.4 mm Clamp diameter 190 mm Cutting angle 45 - 0 - 45 ° Dimensions 830 x 1025 x 900 mm Weight 145 kg

Cutting capacity Ø 110 / 100x100 / 155x80 mm Saw blade diameter Ø 350 mm Number of revolutions: 20 / 40 rpm Blade tilt: +- 45°

Cutting capacity Ø 110 / 100x100 / 155x80 mm Saw blade diameter Ø 350 mm Number of revolutions: 20 / 40 rpm Blade swivel: +- 45°

Cutting capacity Ø 70 / 70x70 / 95x55 mm Saw blade diameter Ø 250 mm Number of revolutions: 40 / 80 rpm Blade rotation: +- 45°

Cutting capacity Ø 90 / 80x80 / 115x70 mm Saw blade diameter Ø 315 mm Number of revolutions: 40 / 80 rpm Blade swivel: +- 45°

Cutting capacity Ø 80 / 80x80 / 100x70 mm Saw blade diameter Ø 300 mm Number of rotations: 40 / 80 rpm Blade tilt: +- 45°
