Cutting capacity Ø 258 mm / 275x250 mm Cutting speed: 20-120 m/min Saw blade dimensions: 27 x 0.90 x 2910 mm Swivel of the bow to the left: 45° Swivel of the bow to the right: 60° Swivel of the table together with the saw bow

The IMet GBS 171 band saw allows angled cutting* Easily adjustable saw arc rotation from 0-60° with reading on a large scale* Quick-clamping vise for fast work with serial cuts* Base and cooling systemCutting capacity:90° : dia 170 mm , rectangular 170×170 mm , square 170 mm45° : dia 130 mm , rectangular 130×130 mm , square 130 mm60° : dia 85 mm , rectangular 80×80 mm , square 80 mmSaw blade: 20×0.9×2035 mmCutting speed: 30 / 80 m/minElectric connection: 230 V / 50 HzElectric motor: 1.5 kWMachine weight: 38 kgDimensions: 430x1000x1498 mm

Cutting capacity at 0°: Ø140 / 150x140 mm Cutting capacity at 45°: Ø105 / 140x105 mm Cutting speed: 34 m/min Saw bow swivel up to 60°

Maximum cutting diameter Ø 280 mm / 410x280mm Cutting speed: 20-120 m/min (Stepless) Saw blade dimensions: 27 x 0.90 x 3800 mm Bow rotation: -60° / +60°

Maximum cutting diameter Ø 350 mm / 510x350mm Cutting speed: 20-120 m/min (Stepless) Saw blade dimensions: 34 x 1.1 x 4780 mm Bow swivel: -60° / +60°

Desktop Band Saw Fervi 120 - Cutting capacity at 0°: Ø125 / 125x125 mm - Cutting capacity at 45°: Ø76 / 76x76 mm - Cutting speed: 40 - 80 m/min (Stepless) - Portable tabletop design - Saw bow rotation up to 60°

Manual Band Saw BOMAR Pulldown 160.120 - Maximum cutting diameter Ø 120 mm / 160x2120mm - Cutting speed: 35-70 m/min - Saw blade dimensions: 13 x 0.65 x 1620 mm - Bow rotation to the right: 60°

Band Saw BOMAR Ergonomic 320.258 DG - Maximum cutting diameter Ø 258 mm / 258x320 mm - Cutting speed: 20-120 m/min (Stepless) - Saw blade dimension: 27 x 0.90 x 2910 mm - Bow swivel to the right: 60° - Bow swivel to the left: 45°

Manual Band Saw BOMAR Ergonomic 340.278 DG Cutting capacity: Ø 278 mm / 340x378mm Cutting speed: 20-120 m/min (Stepless) Saw blade dimension: 27 x 0.90 x 3125 mm Swivel angle to the left: 45° Swivel angle to the right: 60°

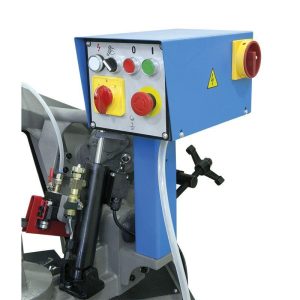

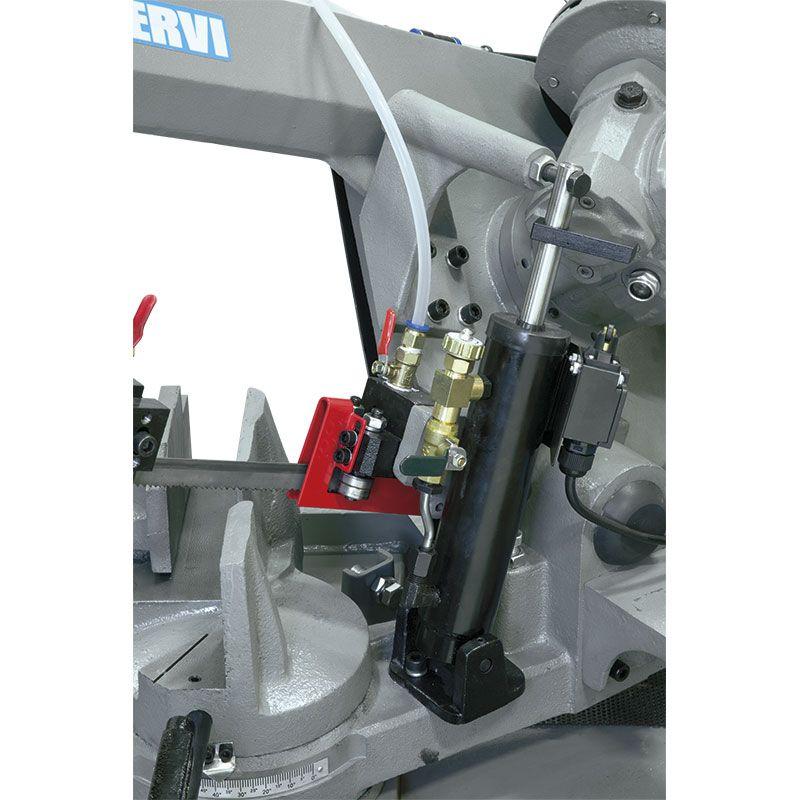

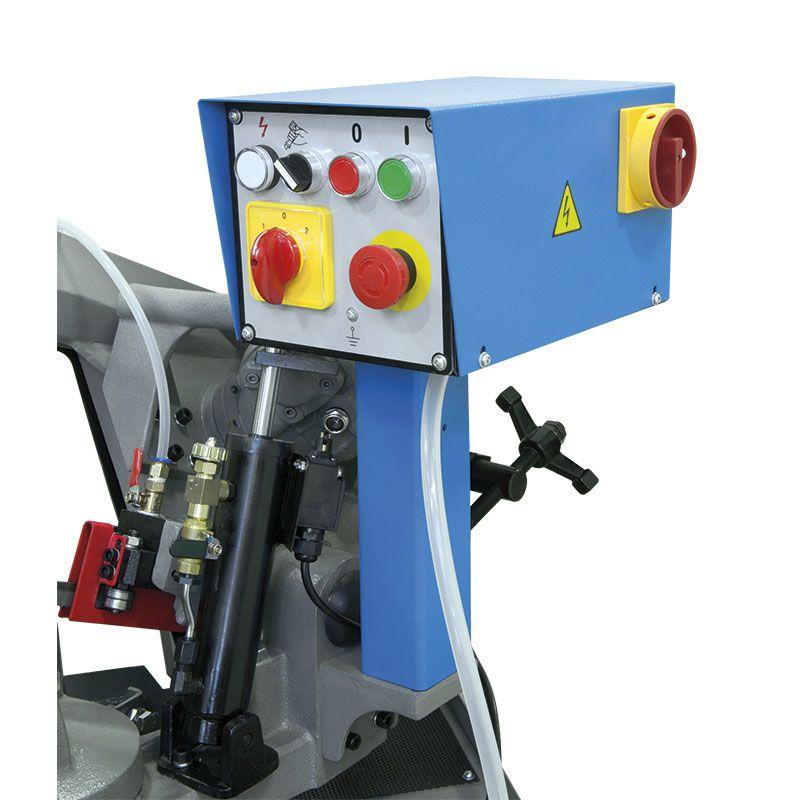

The bandsaw BS 350 GH is a very versatile and reliable machine with autonomous descent for cutting small and medium batches, suitable for both locksmithing and machinery construction, with angle cuts from 45° right to 60° left.The swiveling work table with a diameter of 460 mm rotates along with the saw bow to prevent table cuts.The saw frame is made of steel with a closed tubular cross-section, with 300 mm running wheels and adjustable guides for quick blade changes. The machine allows cutting with the blade tilted towards the work surface, reducing blade stress and increasing performance.Machine operation is managed with an adjustable electric control panel, control LEDs, and a load display using the motor ammeter.Blade cleaning. To ensure maximum efficiency of the blade, the BS350GH is equipped with a motorized brush for blade cleaning.The Imet BS 350 Plus GH bandsaw allows angle cutting* Easily adjustable dual-sided swivel of the saw bow 45°-0-60° with large scale reading* Quick-release vise for fast work in serial cuts* Cooling system* Stepless feed rate adjustment via hydraulic cylinder* Saw band guiding with HM guidesCutting capacity:90°: Ø 305 mm, rectangular 350×200 mm, square 260 mm45°R: Ø 250 mm, rectangular 230×200 mm, square 230 mm45°L: Ø 250 mm, rectangular 230×200 mm, square 230 mm60°R: Ø 175 mm, rectangular 170×100 mm, square 155 mm90° solid (C45): Ø 200 mmSaw band: 27×0.9×3370 mmCutting speed: 37 / 74 m/minWorking height: 940 mmElectrical connection: 400 V / 50 HzElectromotor: 1.5 / 1.8 kWMachine weight: 606 kgDimensions: 1480x1700x1900 mm

The Imet GBS 300 Plus GH band saw enables angle cutting* Easily adjustable dual-sided saw bow swivel 45°-0-60° with reading on a large scale* Quick-release vise for fast work on series cuts* Cooling system* Infinitely variable feed speed adjustment using a hydraulic cylinder* Saw blade guidance with HM guidesCutting capacity:90°: ø 255 mm, rectangular 300×180 mm, square 230 mm45°R: ø 210 mm, rectangular 200×180 mm, square 190 mm60°R: ø 135 mm, rectangular 130×100 mm, square 110 mm45°L: ø 180 mm, rectangular 180×100 mm, square 160 mmSaw blade: 27×0.9×2765 mmCutting speed: 35 / 70 m/minWorking height: 940 mmElectrical connection: 400 V / 50 HzElectric motor: 1.5 / 1.8 kWMachine weight: 412 kgDimensions: 1230x1700x1750 mm

Cutting capacity Ø 150 mm / 150x140 mm Cutting speed: 30-63 m/min Saw blade dimension: 13 x 0.65 x 1735 mm Bow rotation to the right: 60°

Cutting capacity Ø 200 mm / 260x200 mm Cutting speed: 34 / 68m/min Saw band dimension: 27 x 0.90 x 2450 mm Arch tilt to the right: 60°

The bandsaw BS 350 GH is a very versatile and reliable machine with autonomous descent for cutting small and medium batches, suitable for both locksmithing and machinery construction, with angle cuts from 45° right to 60° left.The swiveling work table with a diameter of 460 mm rotates along with the saw bow to prevent table cuts.The saw frame is made of steel with a closed tubular cross-section, with 300 mm running wheels and adjustable guides for quick blade changes. The machine allows cutting with the blade tilted towards the work surface, reducing blade stress and increasing performance.Machine operation is managed with an adjustable electric control panel, control LEDs, and a load display using the motor ammeter.Blade cleaning. To ensure maximum efficiency of the blade, the BS350GH is equipped with a motorized brush for blade cleaning.The Imet BS 350 Plus GH bandsaw allows angle cutting* Easily adjustable dual-sided swivel of the saw bow 45°-0-60° with large scale reading* Quick-release vise for fast work in serial cuts* Cooling system* Stepless feed rate adjustment via hydraulic cylinder* Saw band guiding with HM guidesCutting capacity:90°: Ø 305 mm, rectangular 350×200 mm, square 260 mm45°R: Ø 250 mm, rectangular 230×200 mm, square 230 mm45°L: Ø 250 mm, rectangular 230×200 mm, square 230 mm60°R: Ø 175 mm, rectangular 170×100 mm, square 155 mm90° solid (C45): Ø 200 mmSaw band: 27×0.9×3370 mmCutting speed: 37 / 74 m/minWorking height: 940 mmElectrical connection: 400 V / 50 HzElectromotor: 1.5 / 1.8 kWMachine weight: 606 kgDimensions: 1480x1700x1900 mm

Cutting capacity Ø 230 mm / 275x230 mm Cutting speed: 40-80 m/min Saw blade dimension: 27 x 0.90 x 2720 mm Bow rotation to the left: 45° Bow rotation to the right: 60° Table rotation together with the saw bow

Maximum cutting diameter Ø 280 mm / 410x280mm Cutting speed: 20-120 m/min (Stepless) Saw blade dimensions: 27 x 0.90 x 3800 mm Bow rotation: -60° / +60°

Cutting capacity Ø 230 mm / 275x230 mm Cutting speed: 35 / 70 m/min Saw band dimension: 27 x 0.90 x 2720 mm Bow swivel to the left: 45° Bow swivel to the right: 60°

Maximum cutting diameter Ø 350 mm / 510x350mm Cutting speed: 20-120 m/min (Stepless) Saw blade dimensions: 34 x 1.1 x 4780 mm Bow swivel: -60° / +60°

Cutting capacity Ø 170 mm / 200x170 mm Cutting speed: 42 / 84 m/min Saw blade dimension: 20x 0.90 x 2085 mm Bow rotation to the right: 60°

The IMet GBS 171 band saw allows angled cutting* Easily adjustable saw arc rotation from 0-60° with reading on a large scale* Quick-clamping vise for fast work with serial cuts* Base and cooling systemCutting capacity:90° : dia 170 mm , rectangular 170×170 mm , square 170 mm45° : dia 130 mm , rectangular 130×130 mm , square 130 mm60° : dia 85 mm , rectangular 80×80 mm , square 80 mmSaw blade: 20×0.9×2035 mmCutting speed: 30 / 80 m/minElectric connection: 230 V / 50 HzElectric motor: 1.5 kWMachine weight: 38 kgDimensions: 430x1000x1498 mm

Cutting capacity at 0°: Ø140 / 150x140 mm Cutting capacity at 45°: Ø105 / 140x105 mm Cutting speed: 34 m/min Saw bow swivel up to 60°

Cutting capacity Ø 170 mm / 185x170 mm Cutting speed: 20-85 m/min Vario Saw blade dimensions: 20 x 0.90 x 2110 mm Bow rotation to the right: 60°

Desktop Band Saw Fervi 120 - Cutting capacity at 0°: Ø125 / 125x125 mm - Cutting capacity at 45°: Ø76 / 76x76 mm - Cutting speed: 40 - 80 m/min (Stepless) - Portable tabletop design - Saw bow rotation up to 60°

Cutting capacity Ø 230 mm / 245x160 mm Cutting speed: 20-85 m/min Variable Saw blade dimension: 27 x 0.90 x 2450 mm Bow rotation to the right: 60°
